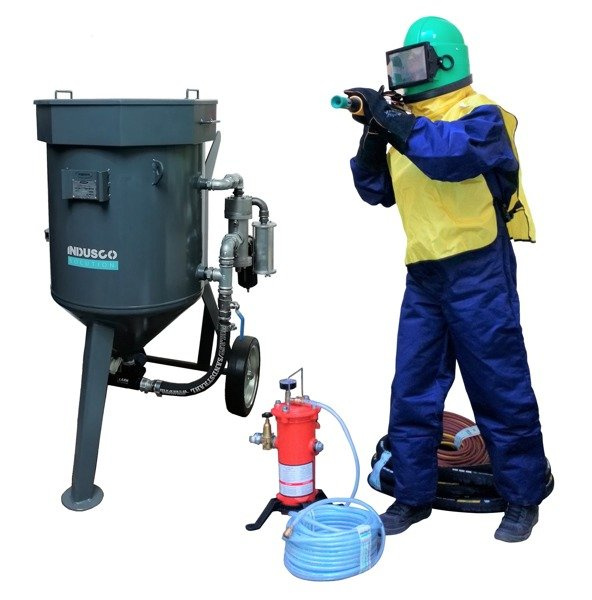

OPTIMAL Clemco package 150L

Our sand blasters were created to be used in a professional way in industrial plants, manufacturing plants and the service facilities.

     They are fit for all conventional abrasive materials. They are simple to use and reliable. The accessories used are of highest quality and guarantee a long-time performance.

    The pot bottom allows to feed the pot conveniently with abrasive material and a cone funnel enables an easy flow of the abrasives. The  inspection door in the pot allows all items which got inside in and blocked the flow of the abrasive material to be easily removed. The package is equipped with a sieve to avoid contamination which can block the flow of abrasives from entering the pot. The cover which is also part of the sand blaster equipment protects the machine against water which may get in from outside.

    A relatively small weight of the movable pressure pot facilitates easy transportation. It can be transported in a horizontal position, thanks to which it can be fitted into smaller transportation vehicles.

    All pressure pots we offer meet the technical requirements set by the currently applicable PE Directive 2014/29/UE 26 February 2014 and have CE certificates of conformity issued by a BTI-CERT notified authority no. 1433. When manufacturing the containers all quality requirements for welding included in the PN-EN ISO 3834-2:2007 standards are met, what is certified by a certifying authority.

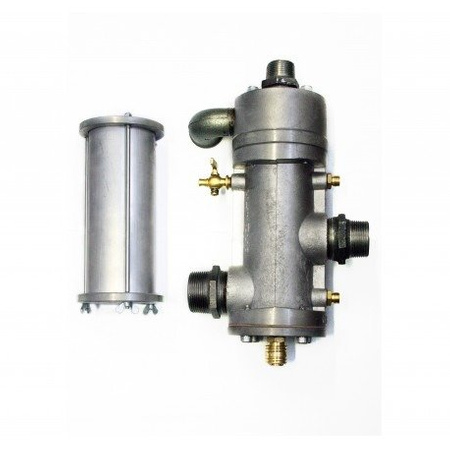

    The sand blasters are equipped with a moisture separator that eliminates the moisture in the air which is fed (even by 98%), thanks to which the abrasive material stays powdery and does not block the container exit.

    The FSV metering valve is very comfortable to use and durable. The 45° tilt makes the mix of air and abrasive material homogenous and the service port enables the valve to be cleansed from any remains.

    The RMS 2000 valve is a part of the pneumatic control system, which allows for opening and closing the discharge of the material remotely from your workplace. The handle RLX in the pneumatic control system forms part of the control system which allows for starting and holding the operations of the sand blaster remotely from your workplace. This is connected with the RMS valve through a twin line hose. When the lever is released the pot decompresses and the discharge of the abrasive material is stopped.

THE PACKAGE INCLUDES:

- 150 liter pressure pot, wheels
- Clemco FSV metering valve

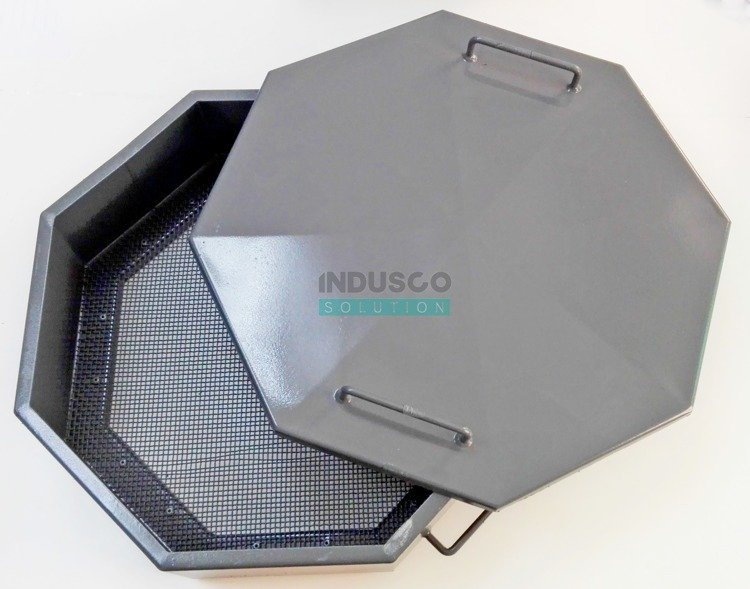

- Elements connecting the valve with the pot, sieve and cover

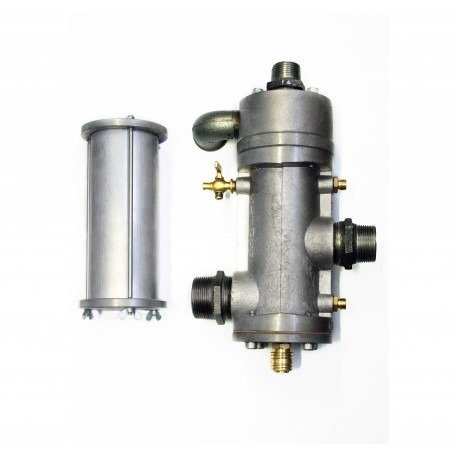

- Moisture separator
- BTI certificate, declaration of conformity CE

PNEUMATIC REMOTE CONTROL SYSTEM:

- Clemco RMS 2000 valve with silencer

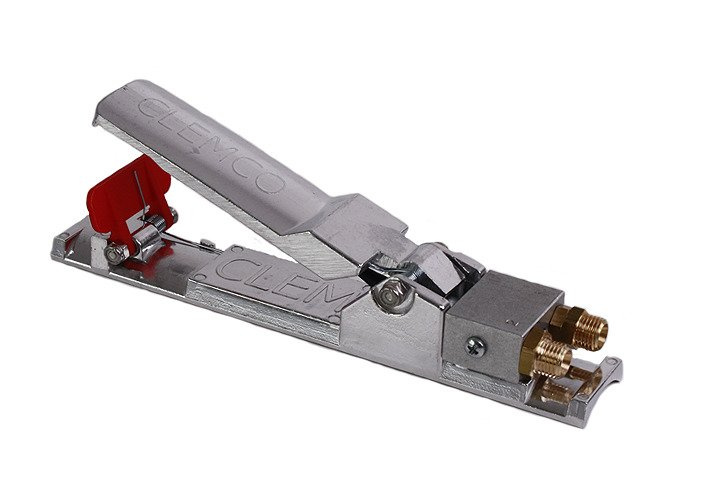

- Clemco RLX-III deadman handle

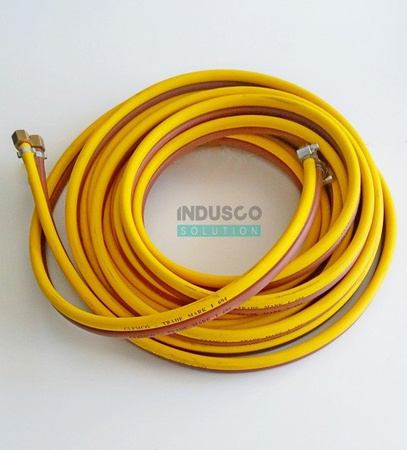

- 15 meter Clemco twin line hose

ACCESSORIES:

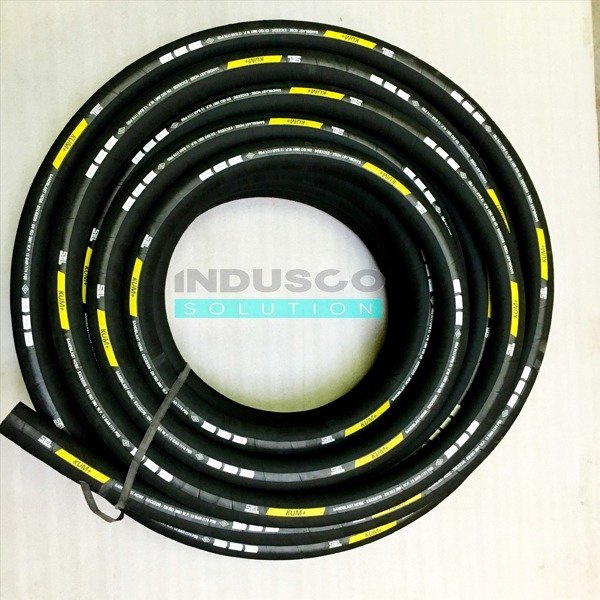

- 10 meter blast hose, KUM+, DN 25

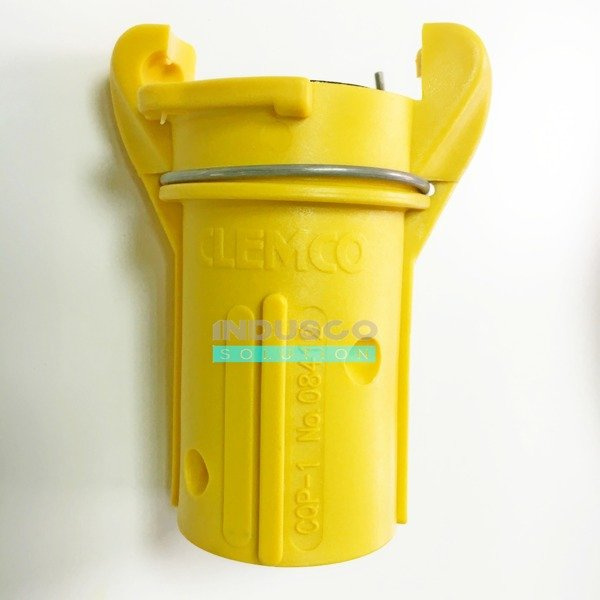

- Clemco CQP-1 coupling (internal diameter ᴓ 25)
- Clemco NHP-1 nozzle holder (internal diameter ᴓ 25)

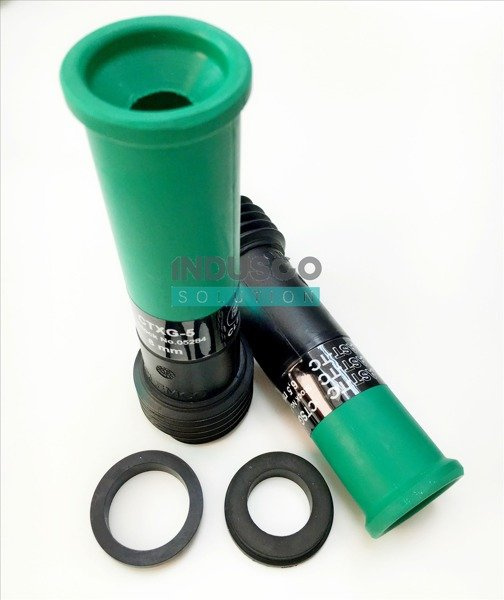

- Clemco CTSG-type tungsten carbide venturi nozzle*

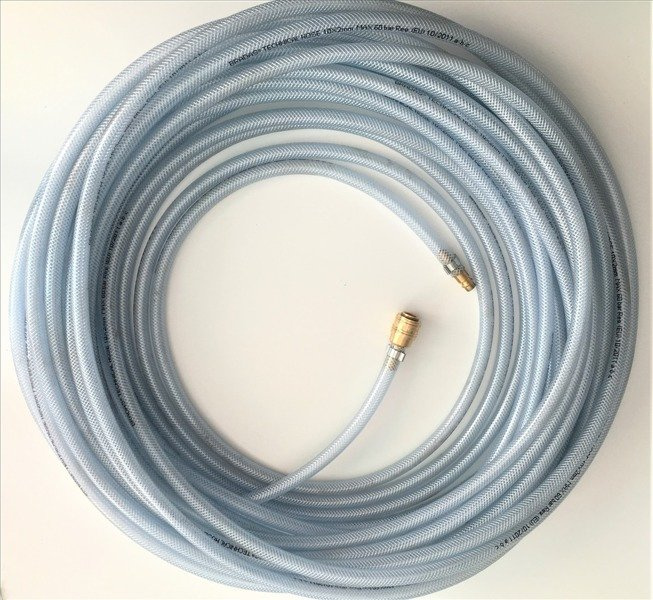

- 15 meter breathing air hose fitted with quick connect couplings

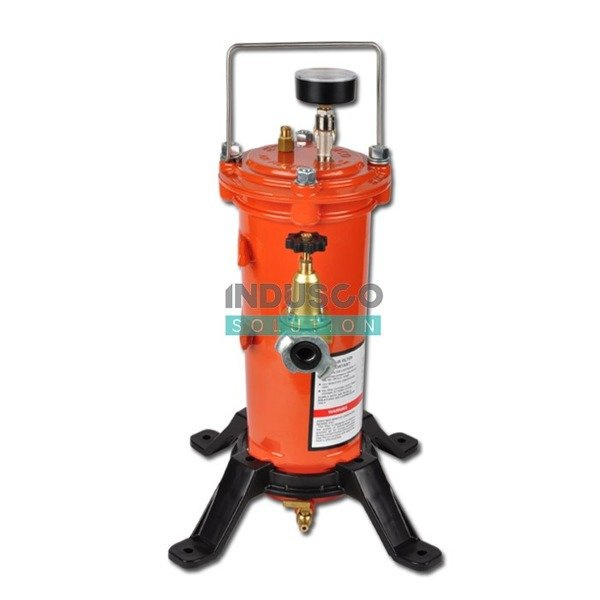

- Clemco CPF-20R breathing air filter

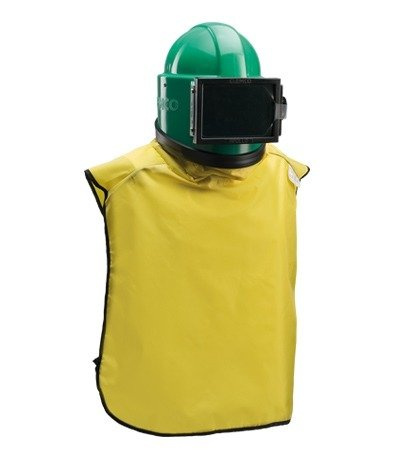

- Clemco Apollo 100 blast helmet with a regulation system

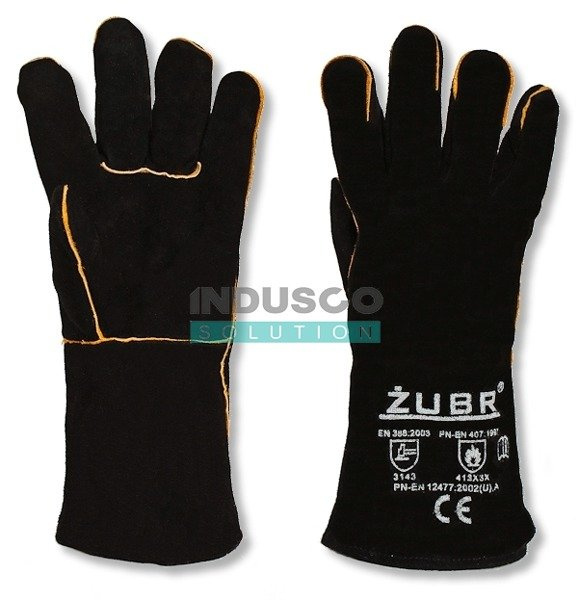

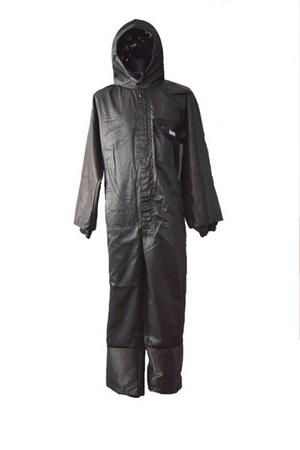

- Professional blaster suit, protective gloves

 *Nozzle size dependent on air input

 Technical parameters:

To work with a sand blaster from our range, you need a screw compressor (the pressure must be constant) with 3-7 m3/min (106-275 CFM) air delivery, depending on the type of work:

- small areas e.g. headstone inscriptios - at least 3m3/min, small short or long nozzle

- large surfaces at least 5m3/min, large and long nozzle.

The following table shows the compressed air consumption in m3/min at different nozzle openings and pressures.

Please note that you need an additional 0.8 - 1.0 m3/min for the helmet and equipment.

 The sand blasting package meets all legal regulations. A full set of documents is attached to the package, including: a manual, a guarantee, CE testing certificate for the pressure container made by a BTI-CERT notified authority no. 1433, CE declaration of conformity.

We offer professional advice to our clients in choosing the proper machines and accessories for blasting.

Our specialist will gladly answer all your questions and help solve the problems related to sand blasting.
