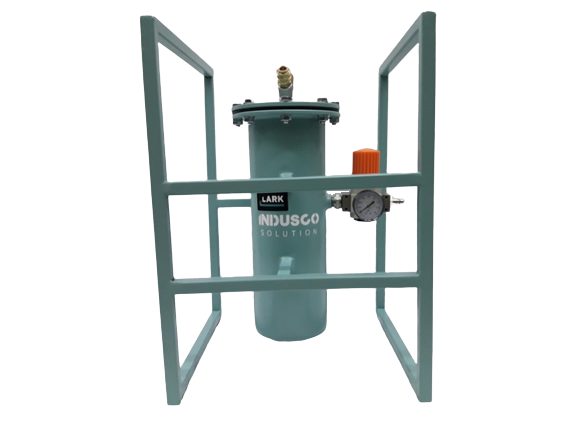

LPO-3.1S breathing air filter

The LPO-3.1S breathing air filter for blasting works:

- removes the water and oil condensate and solid particles,
- has a AFF carbon insert (replaceable, also available),
- is dedicated for one user
- is equipped with a pressure regulator and a manometer.

TECHNICAL DATA:

- Number of connections to blast helmets - 1

- Filter internal volume - V = 5.75 [dm³]

- Max. Working pressure - 8.6 bar

- Max. Temperature - +50 ͦC

- Min. Temperature - -10 ͦC

- Outside diameter - 140 mm

- External height - 430 mm

- Filter dimensions with equipment L x W x H - 350 x 350 x 450 mm

- Filter dimensions with frame L x W x H - 400 x 400 x 560 mm

- Weight Q = approx. 18,20 kg

Filter does not remove and does not protect against carbon monoxide or other toxic gases that may be present in the air supply.

Delivery:

- Breathing air filter incl. carbon filter insert AFF

- 2 years warranty

- Operation manual

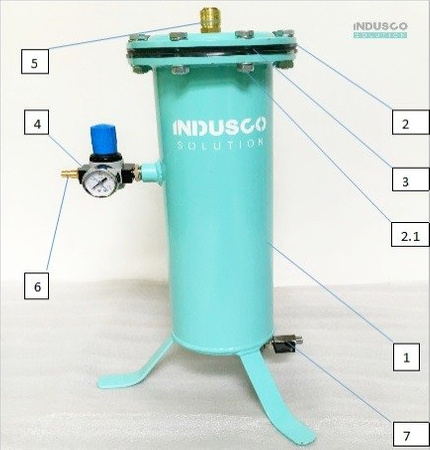

1.- Filter housing

2.- housing cover

2.1 - screw connection

3.- filter insert

4.- air reducing agent

5.- Plug-in socket for air inlet from the filter

6.- plug from plug-in coupling for filter supply

7.- Valve for draining the condensate
