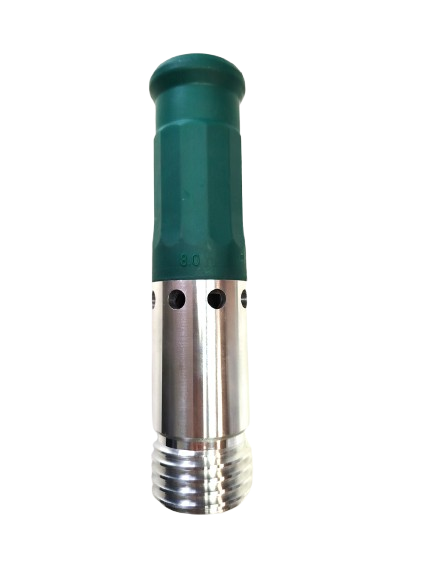

DEFENDER-600 nozzles - silicon carbide

Blast nozzles DEFENDER

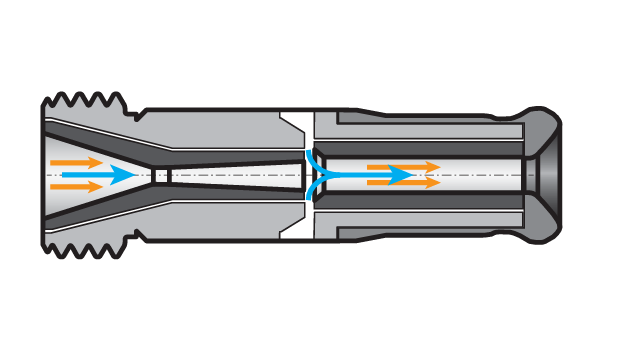

Extremely wear-resistant, extra-long double-venturi blast nozzles, made of silicon carbide ( SiC ). The extra long double venturi design can be viewed as two nozzles in a row, with a gap and holes between them through which ambient air is drawn into the second segment of the nozzle. The exit segment is also wider than a regular nozzle. This change increases the size of the blast pattern and the blast speed.

Service life – up to 600 hours.

Cover: polyurethane

Thread: aluminium, 50 mm for NHP holders

Inlet size: 32 mm

Order code Model                           Description

10113012   Defender 600  x 6.5      Extra long double venturi blast nozzle, silicon carbide, 6.5 x 192 mm

10113013   Defender 600  x 8.0      Extra long double venturi blast nozzle, silicon carbide, 8.0 x 209 mm

10113014   Defender 600  x 9.5      Extra long double venturi blast nozzle, silicon carbide, 9.5 x 240 mm

10113015   Defender 600  x 11.0    Extra long double venturi blast nozzle, silicon carbide, 11.0x 279 mm

10113016   Defender 600  x 12.5    Extra long double venturi blast nozzle, silicon carbide, 12.5 x 309 mm
